L Shape Bed Cushions only available for 1800mm x 1100mm and 1800mm x 1200mm bed sizes

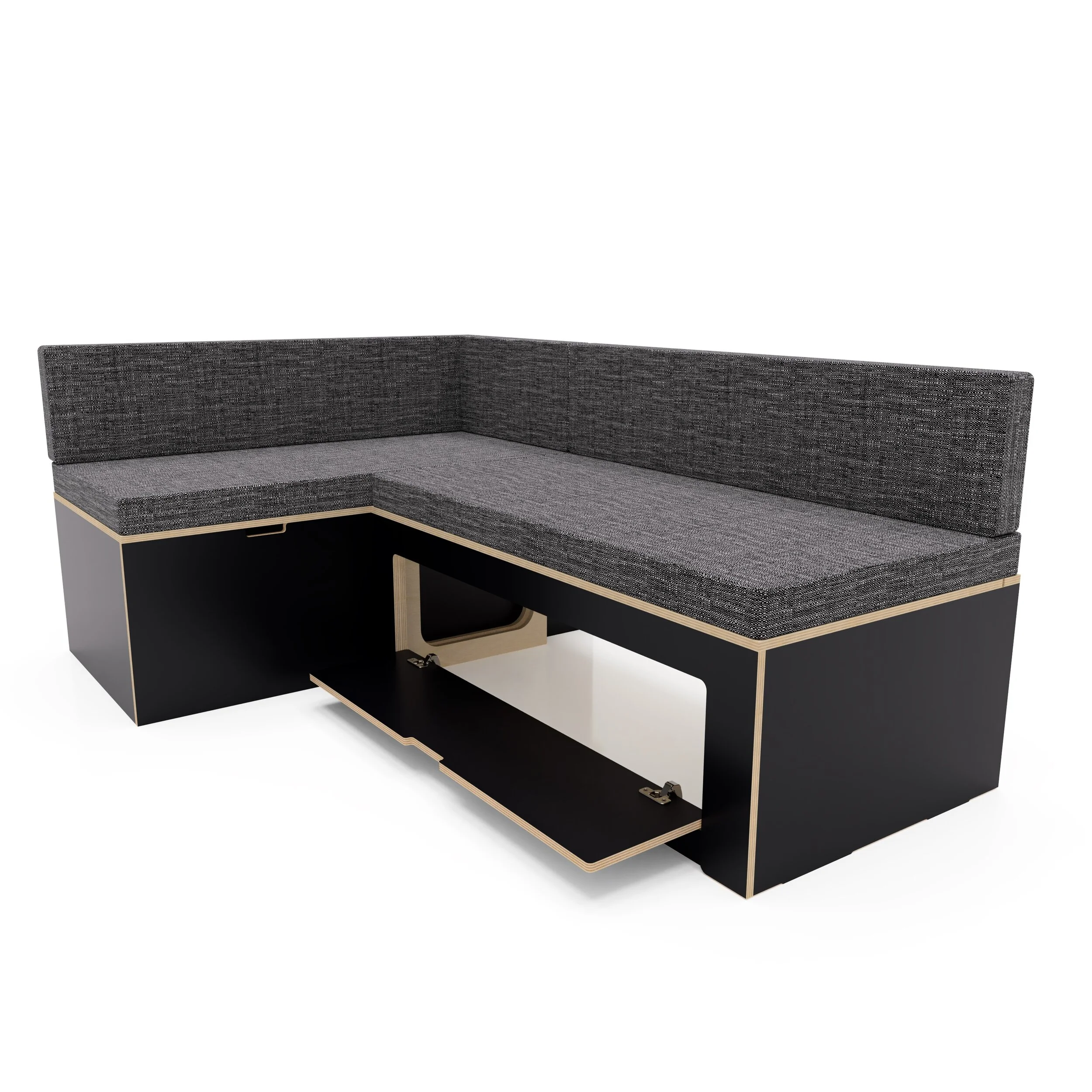

Van Furnitures popular L Shaped Laminated birch ply bed in Black Laminate

This unit is supplied as a flat pack kit for self build.

Fits most large vans, SWB VW T4’s T5’s T6’s and larger makes of vans.

Designed and constructed from 15mm Laminated Ply , this is supplied as a self build flat pack kit.

We supply all fixings and assembly instructions, please note assembly time is approx 3 - 4 hours.

Self Build & Pre Assembly options

Our Self-Build kits come with full instructions and all relevant fixings provided. Timing for assembly is highly subjective depending on your skill level but on average for a fully built kit that is sanded, finished and installed we would recommend a days allocated timing. We would say this requires a good grasp of DIY ability but we are always there to help if you run in any trouble, with us having fully assembled kits in house we can use for reference and send pictures of.

For a guaranteed hassle-free experience all of our kits are available for pre assembly and can be collected directly from our workshop. We often have many kits built up in our showroom which you can find here .

Pallet Delivery for Mainland UK is £150. Please contact us for Channel Islands and Scottish Highlands as charges for these will be more.

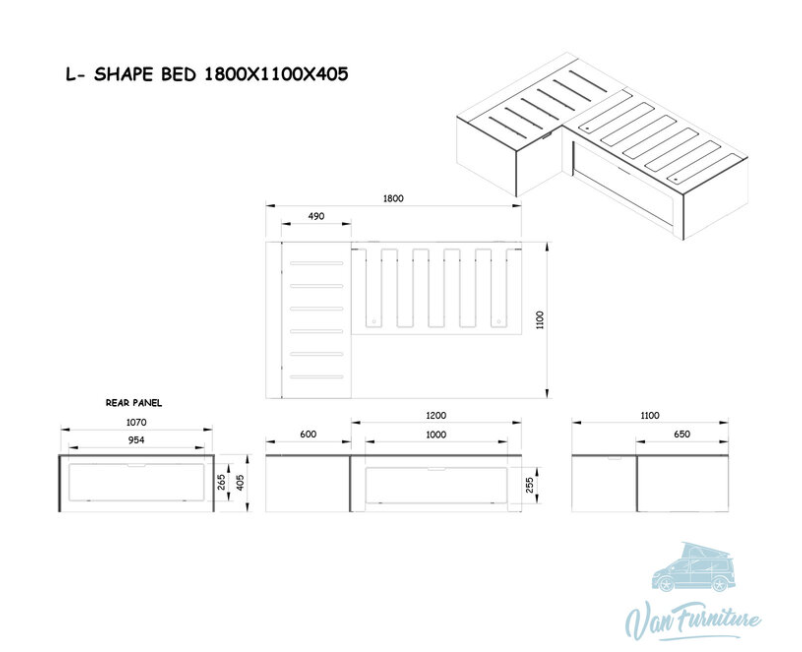

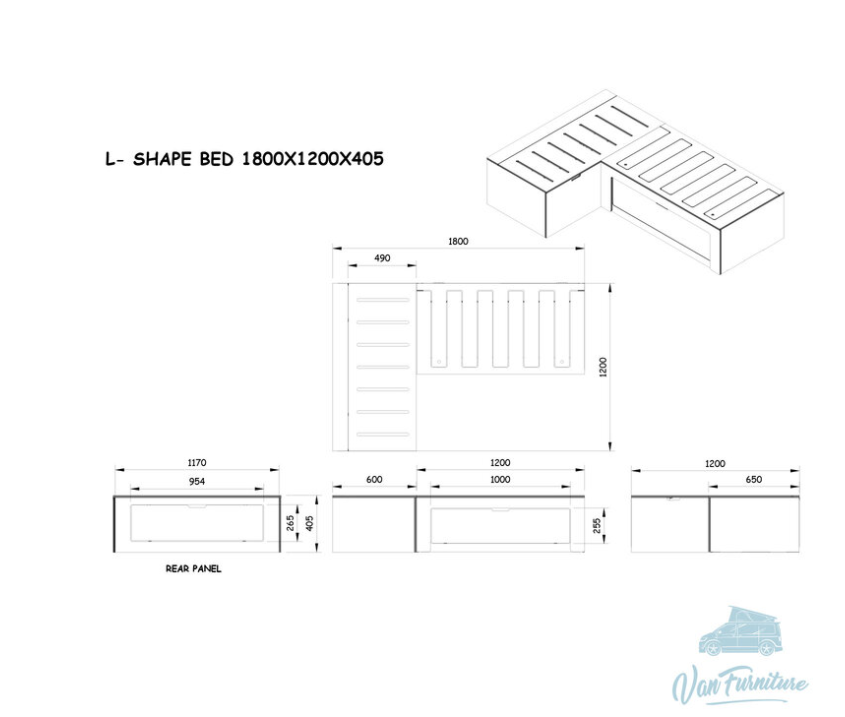

Overall Size:

• Width: 1600mm - 1800mm

• Height: 405mm

• Depth: 1100 - 1200mm

• Total bed size 1600-1800mm x 1100-1200mm

We offer a range of ply camper beds so if you are looking for a different style, size or fitment please check out our other products online.

Standard cushions also available online.

Designed and constructed from 15mm Laminated ply for weight saving, bed tested to 250kg, simple assembly, only tools required is a screwdriver.

We supply all fixings, hinges and printed assembly instructions. Note L Shape bed kits are universal fitment, these can be installed either side of the van, front or rear, to do this these kits needed to be provided square so wheel arch shapes will need to be scribed if fixing by a wheel arch.

Lead times can be found here
